| SKU | JY693A |
| Brand | Aruba |
| Model | [JY693A] Access Point “Aruba” AP-203H (RW) Unified AP |

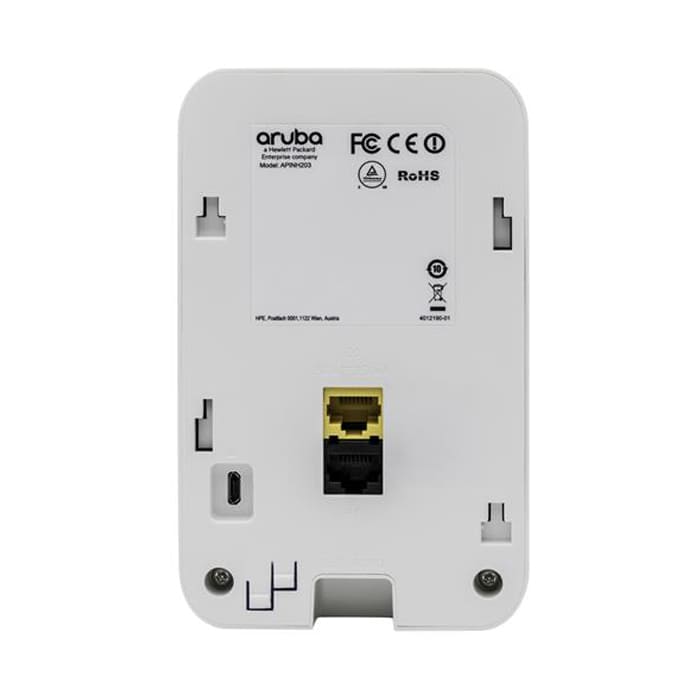

| Ports | Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back), Local: 10/100/1000BASE-T Ethernet (RJ-45, bottom), Passive pass-through interface (two RJ-45, back and bottom) |
| Wi-Fi Radio Specifications | It supports up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz |
| Wi-Fi Antennas | Two integrated dual-band moderately directional antennas for 2×2 MIMO with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.3dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP. |
| Dimension | 86mm (W) x 26.5mm (D) x 140mm (H) |
| Weight | 225g |
| Power sources and consumption | Maximum (worst-case) power consumption: 7.4W |
| Mounting | The AP ships with a mounting plate to attach the AP to a single-gang wall-box (most international variations covered). The AP securely attaches to the plate; a custom security tool to remove the AP from the plate ships with the product |
| Mode | Controller-managed mode, Aruba Instant mode,Remode AP, Air monitor (AM) |
| Warranty | Aruba Limited Lifetime Warranty |

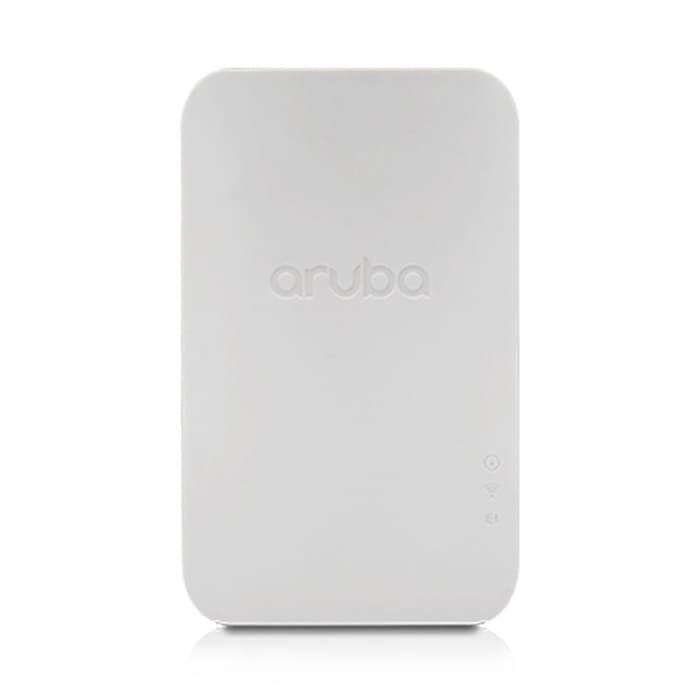

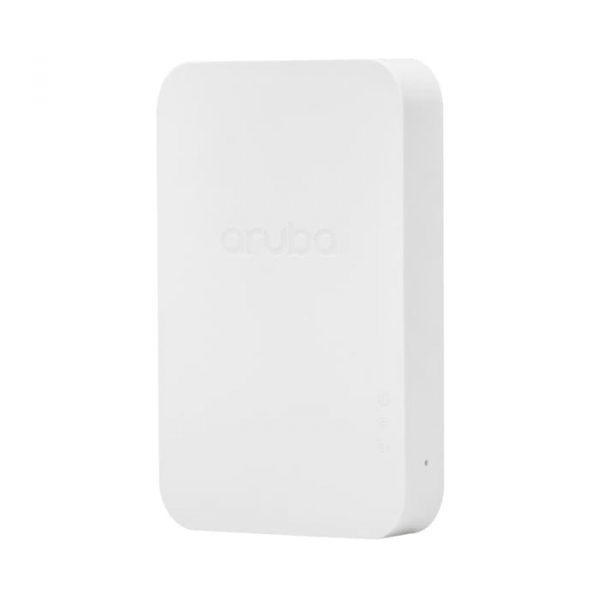

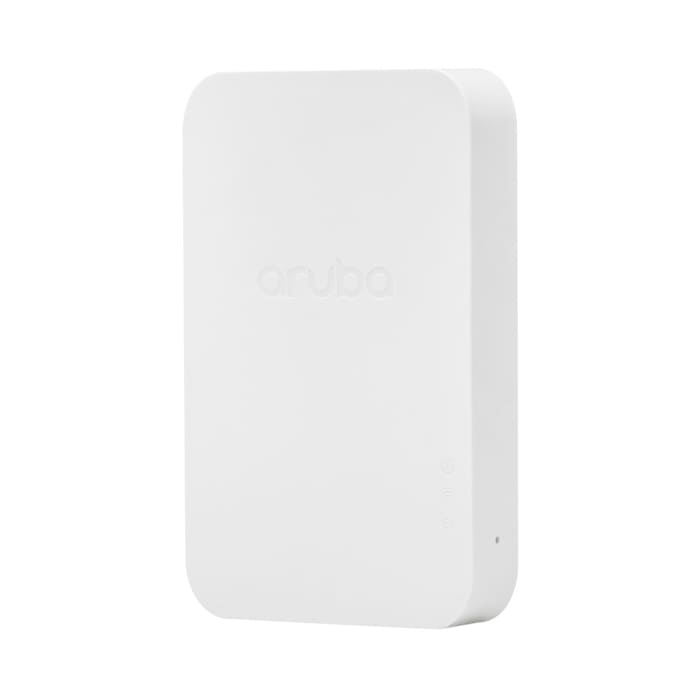

Aruba 203H Access Point
Cost-effective 802.11ac access point for branch offices and hospitality environments
This compact access point ensures the most cost-effective Wi-Fi connectivity for indoor premises including hotel rooms, dormitories, small offices and remote workstations. It’s software configurable to operate in either 1×1 dual radio mode, or 2×2 single radio mode.
Powered by PoE, it minimizes power consumption with rich features that further facilitates a highly efficient and reliable wireless network, and combines wireless and wired access in a single compact device.
This AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk mounted AP using an optional mounting kit. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.
Get a big performance advantage
Patented ClientMatch™ technology improves performance and eliminates sticky client behavior while roaming.
Protect service quality over the air
AppRF technology enables prioritization and policy enforcement for business-critical enterprise apps like Microsoft Lync.
You have the freedom to choose
The AP-203H can be deployed as a wall-mounted hospitality AP or converted to a desk mounted remote AP.
