|Model||UPS “APC” Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card|
|Output Power Capacity||2.7 KWatts / 3.0 kVA|
|Nominal Output Voltage||230V|
|Output Connections||(2) IEC Jumpers (Battery Backup) (8) IEC 320 C13 (Battery Backup) (2) IEC 320 C19 (Battery Backup)|
|Nominal Input Voltage||208V , 230V|
|Input Connections||British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P|
|Input Voltage Range for Main Operation||140 – 280V|
|Typical Recharge Time||3hour(s)|
|Control Panel||LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console|
|Height||432mm , 43.2CM|
|Width||178mm , 17.8CM|
|Depth||483mm , 48.3CM|
|Warranty||3 Yrs./ Onsite Swap|

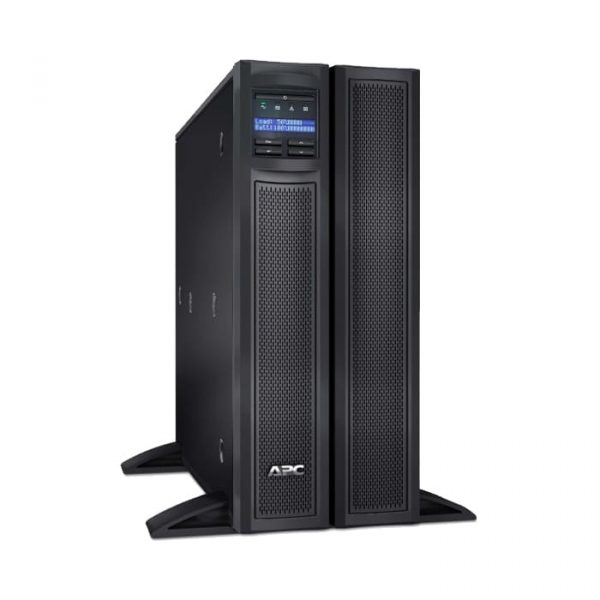

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
- Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other …
- Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, Temperature Probe, USB cable, Web/SNMP …
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- High online efficiency
Reduces utility costs, generates less heat.
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Scalable runtime
Allows additional run time to be quickly added as needed.
- Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
Customize UPS capabilities with management cards.
- StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
- Network manageable
Provides remote power management of the UPS over the network.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Serial connectivity
Provides management of the UPS via a serial port.
- USB connectivity
Provides management of the UPS via a USB port (not available on all models).
- Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED status indicators
Quickly understand unit and power status with visual indicators.
