|Model||[SRT10KXLI] UPS “APC” Smart-UPS SRT 10000VA 230V|
|Output Power Capacity||10.0 KWatts / 10.0 kVA|
|Nominal Output Voltage||230V|
|Topology||Double Conversion Online|

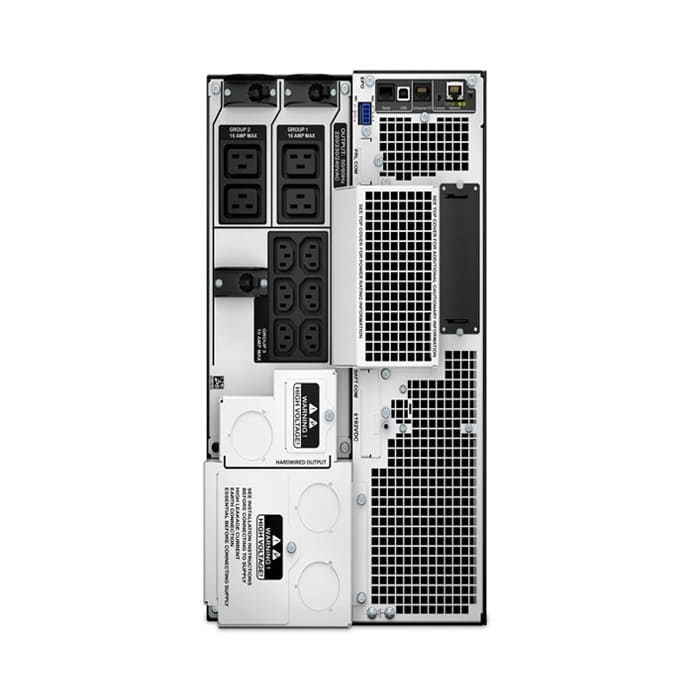

|Output Connections||(6) IEC 320 C13 (Battery Backup) (4) IEC 320 C19 (Battery Backup) (1) Hard Wire 3-wire (H N + G) (Battery Backup) (3) IEC Jumpers (Battery Backup)|
|Nominal Input Voltage||230V , 400V 3PH|
|Input Connections||Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)|
|Input Voltage Range for Main Operation||160 – 275V|
|Typical Recharge Time||1.5hour(s)|
|Control Panel||Multi-function LCD status and control console|
|Height||432mm , 43.2CM|
|Width||263mm , 26.3CM|
|Depth||715mm , 71.5CM|
|Warranty||2 Yrs. Onsite + Install|
APC Smart-UPS SRT 10000VA 230V
- High density, double-conversion on-line power protection with scalable runtime
- Includes: CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
- 10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Smart-UPS On-Line Features & Benefits
- Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Network manageable
Provides remote power management of the UPS over the network.
- InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
Customize UPS capabilities with management cards.
- LED status indicators
Quickly understand unit and power status with visual indicators.
- Serial connectivity
Provides management of the UPS via a serial port.
- Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
- Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
- Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
