SKU | SRV1KIL |
Brand | APC |
Model | [SRV1KIL] UPS “APC” Easy SRV 1000VA 230V with External Battery Pack |
Output Power Capacity | 800Watts / 1.0kVA |
Nominal Output Voltage | 230V |
Topology | Double Conversion Online |
Output Connections | (3) IEC 320 C13 (Battery Backup) |
Input Connections | IEC-320 C14 |
Input Voltage Range for Main Operation | 160 – 280V |
Typical Recharge Time | 4hour(s) |
Control Panel | Multi-function LCD status and control console |
Height | 223MM, 22.3CM |
Width | 145MM, 14.5CM |
Depth | 288MM, 28.8CM |
Weight | 24.0KG |
Warranty | 2 Years Onsite Service |

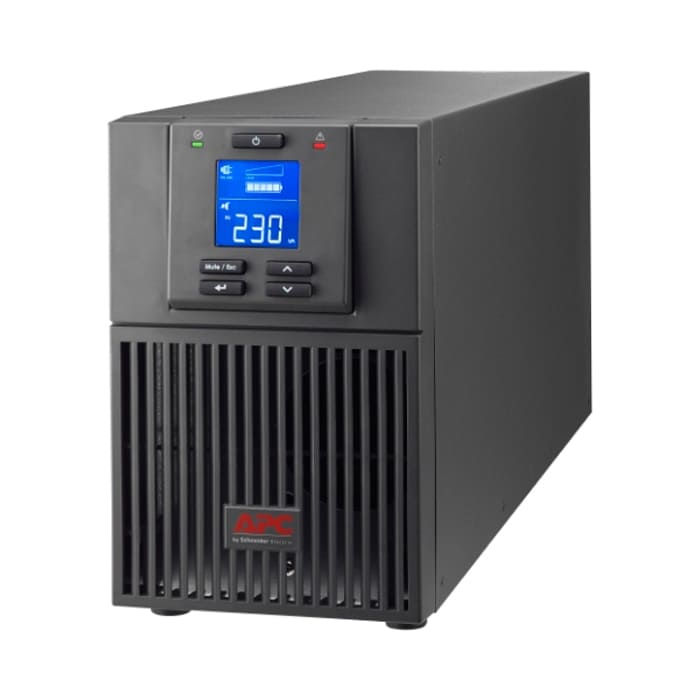

APC Easy UPS On-Line SRV Ext. Runtime 1000VA 230V with External Battery Pack
- High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
- Includes: Basic UPS signalling RS-232 cable, CD with software, Country-specific detachable power cord, Qty 1 – DC Cable, USB cable, User Manual
Key Features
- Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault. - Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power. - ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection - Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling. - Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging. - Intelligent SmartSlot
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS. - LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms. - Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC’s Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks. - USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Easy UPS Features & Benefits
Features
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. - USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port. - Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.
Management Software - Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Serviceability
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced. - Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement. - Disconnected battery notification
Warns when a battery is not available to provide backup power. - Audible alarms
Provides notification of changing utility power and UPS power conditions
Manageability
- Network manageable
Provides remote power management of the UPS over the network. - SmartSlot
Customize UPS capabilities with management cards. - LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms. - LED Indicators
Provide easy-to-read status of the unit and utility power conditions. - Serial connectivity
Provides management of the UPS via a serial port.
