| Part Number | EVAAE- (AC-MAX) |
| Power | Three Phrase |
| Input/Output Rating | 400 Vac, 32 A, 50 Hz |
| Standby Power | < 2.6 W |
| Max Output Power | 22 kW |
| Charging Interface | (1) IEC 62196-2 Type 1 or Type 2 tethered plug, 5m Cable |
| (2) IEC 62196-2 Type 2 Socket | |
| (3) IEC 62196-2 Type 2 Socket with Shutter | |
| Internal RCD | AC 30mA, DC 6 mA |
| Charging Cable Length | 5m |
| Display | LED bar, 4 colors |
| Network Interface | Bluetooth, Ethernet, Cellular |
| Dimension | 219 x 371 x 167 mm (excluding cable) |
| Weight | 3.8 kg |
| Warranty | 2 Years (replace with new one) |

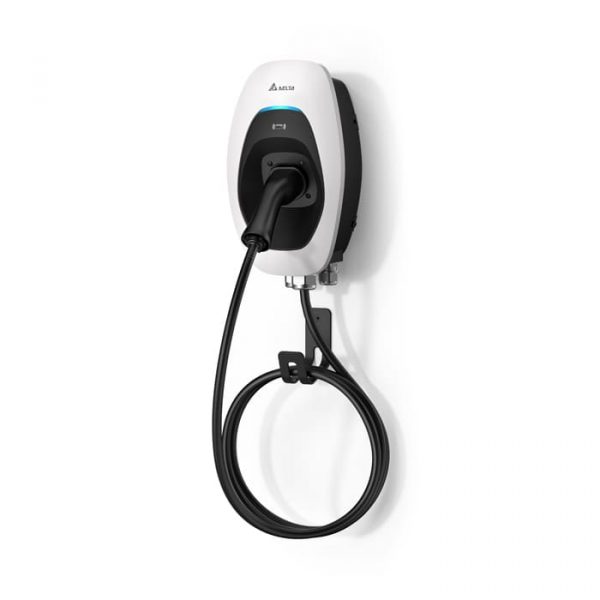

ขาย Electric Vehicle Charger “Delta” AC MAX (EVAAE-) ราคาถูก
Compact and Powerful – Liven up Business and Home Charging
AC MAX is a smart AC charger supporting maximum 22kW output and global charging interface. With IP55/IK08 and compact design, AC-MAX provides high adaptability to outdoor and space-limited sites. By supporting ISO 15118, network connectivity and compatible with OCPP, AC MAX reserves the interoperability for system integration and can be an ideal solution for commercial and residential charging sites.
Delta AC chargers have a power output ranging from 7 to 22 kW. Featuring a compact design, global charging interface support, user authorization capability, and easy installation, our AC-MAX chargers are perfectly suited for both commercial and home charging.
Features and Benefits
- 22kW AC charger improves parking turnover
- RFID and ISO 15118 authentication for user management
- Low standby power consumption for energy-saving
- Remote management by built-in network connectivity
- OCPP compliance enables backend system integration
- IP55 and wallmount/stand installation provides high adaptability
Home
- Garage
- Apartment
- Condos
Business
- Workplace
- Commercial Parking
- Retail and Hospitality
Public
- Roadside Parking
- City Parking
- Service Station
Click here to learn more about Delta Support
